Cat 5 ICF | Fluid-Applied Barrier for Insulated Concrete Forms
Cat 5 ICF is a high-performance, fluid-applied air and waterproof barrier developed by PROSOCO for use with insulated concrete forms (ICF), precast walls, and CMU back-up assemblies. This Silyl-Terminated-Polymer (STP) product delivers superior weather protection by combining the flexibility of silicone with the toughness of polyurethane. It forms a seamless elastomeric membrane that resists air leaks and water intrusion, even during extreme weather events.
Product Description
Formulated for both new builds and retrofits, Cat 5 ICF can be applied directly to damp or dry substrates without primer, saving valuable time and eliminating delays. Once cured, it forms a continuous, monolithic membrane that withstands 155 mph winds and the drenching rains of a Category 5 hurricane. Furthermore, it complies with stringent VOC regulations and is compatible with most paints, sealants, and waterproofing systems, including self-adhered membranes and tapes.
Key Benefits of Cat 5 ICF
- Ideal for ICF, CMU, and precast concrete wall assemblies
- Can be applied in wet weather and on damp substrates
- Extremely durable and fully waterproof once cured
- Meets or exceeds ASTM and ICC standards
- VOC compliant: <30 g/L formulation
- Forms a seamless, flexible barrier that adheres to most surfaces
Common Applications
- Insulated Concrete Form (ICF) walls
- Concrete Masonry Units (CMU)
- Precast concrete panels
- Rain screen cladding and backup walls
Storage & Packaging

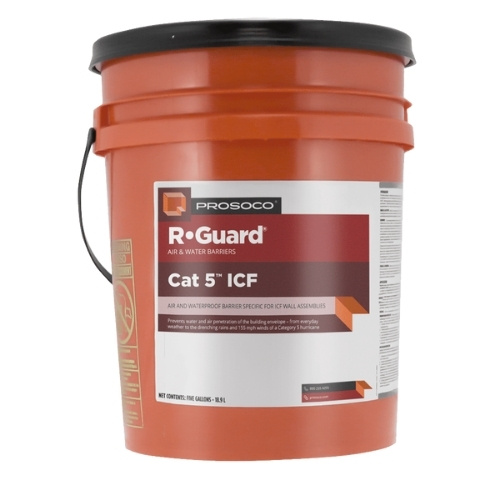

Cat 5 ICF is available in 5-gallon pails and offers a 1-year shelf life in unopened, tightly sealed containers. Its light gray viscous liquid form is easy to apply with minimal odor, making it suitable for job sites with environmental restrictions.
Product Properties
| Property | Value |
|---|---|
| Form | Viscous liquid, mild odor, light grey color |
| Specific Gravity | 1.35 – 1.50 |
| pH | Not applicable |
| WT/GAL | 11.6 lbs |
| Active Content | Not applicable |
| Total Solids | 99% |
| VOC Content | <30 g/L |
| Flash Point | >200°F (>93°C) |
| Freeze Point | Not applicable |
| Shelf Life | 1 year in tightly sealed, unopened container |
| Available Sizes | 5-gallon |
For vertical wall applications requiring superior waterproofing, explore Spray Wrap Rain Screen. For full product support and documentation, visit the official PROSOCO website.
