Product Description

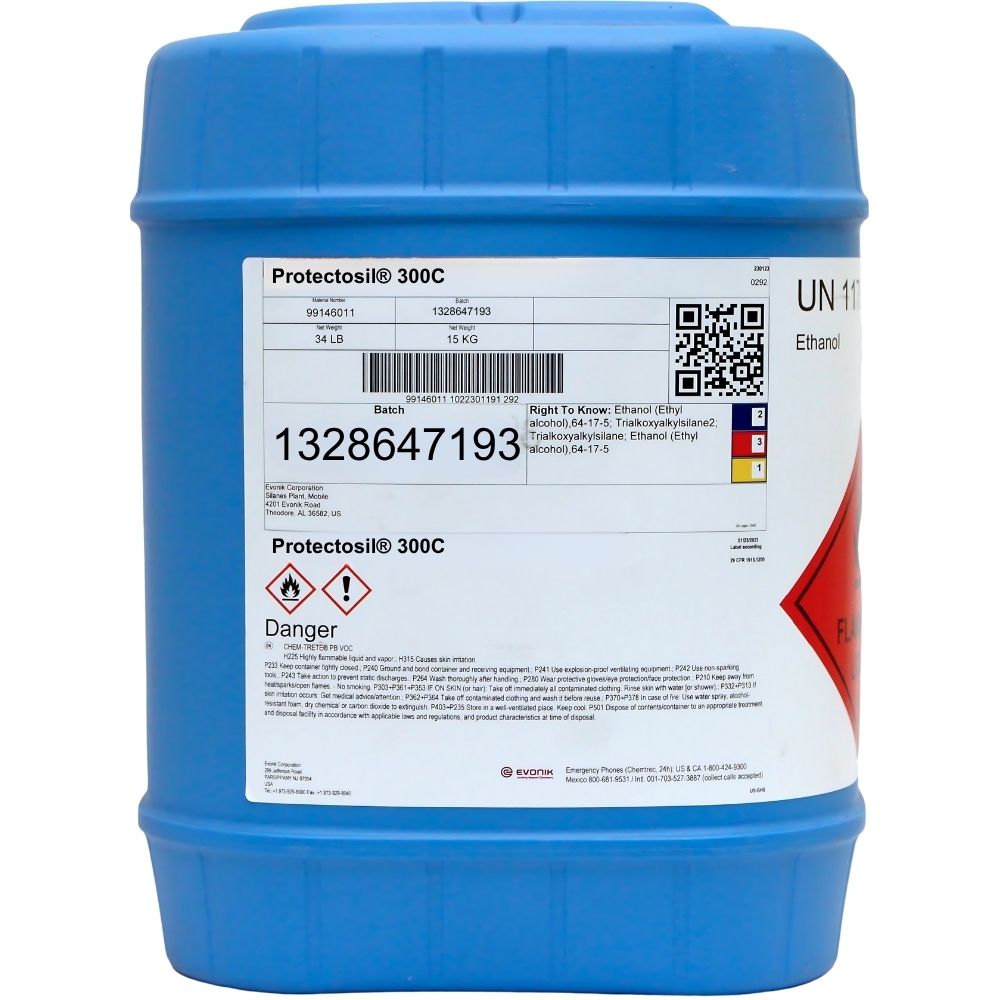

Protectosil® 300C is a clear, penetrating, breathable surface treatment for concrete. This solvent-free silane technology chemically bonds with silica to form a permanent attachment of the water-repellent molecule. It creates a deep hydrophobic barrier that prevents the ingress of water and waterborne contaminants, reducing premature deterioration. The corrosion inhibitor component migrates into the steel reinforcement, forming a protective layer and mitigating active corrosion, including both microcell and macrocell corrosion mechanisms.
Typical Applications
- Cast-in-place, pre-cast, and high-strength concrete structures

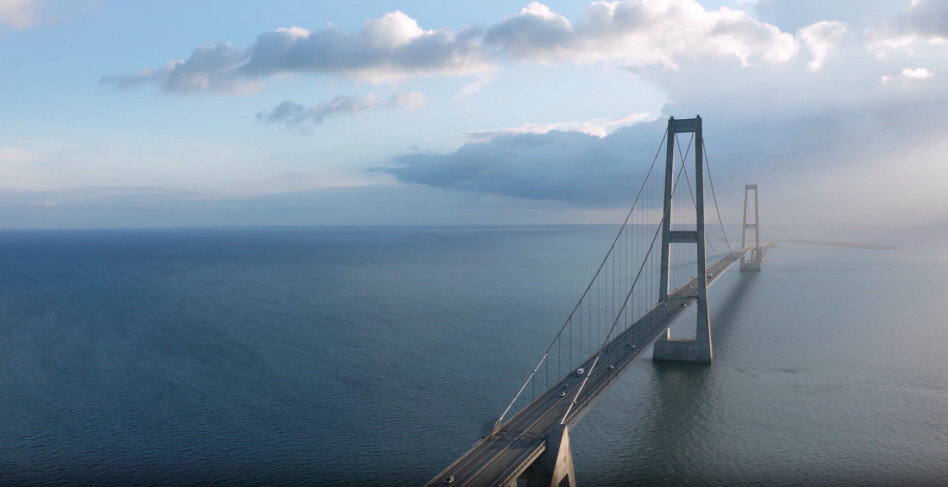

- Bridge decks, parking decks, beams, piers, balconies, driveways, and roadways
- High-traffic areas with deicing salt exposure (e.g., piers, coastal bridges)
- Reinforced concrete at risk of corrosion from chlorides or carbonation
Key Benefits
- 100% active content
- Excellent resistance to chloride ingress
- Reduces water intrusion
- Reduces microcell and macrocell corrosion
- High resistance to alkali attack
- Mitigates AAR & ASR deterioration
- Deep penetration into concrete
- Keeps substrates cleaner
- Breathable and VOC compliant
- Performs on wearing surfaces
Performance Data
- Alberta DOT Penetration Sealer Type 1c: Water repellency with heavy abrasion = 86.1%
- Corrosion Beam Test (Cracked G109): 65% reduction
- ASTM C642 (Water Absorption): 0.03% at 48h, 0.74% at 50d
- ASTM C672 (Deicer Scaling): 0 rating (100 cycles)
- ASTM G3 Electrochemical Testing: Coating layer = 100μ to 250μ
- NCHRP Series II (Water Absorption): 90% @ 200 ft²/gal, 87% @ 300 ft²/gal
- Reduction in Chloride Ion Ingress: 91% @ 200 ft²/gal, 88% @ 300 ft²/gal
- NCHRP Series IV (Chloride Ions): 99% @ 200 ft²/gal, 98% @ 300 ft²/gal
Limitations
- Not suitable for below-grade waterproofing
- Do not apply below 20°F (-6.5°C) or above 100°F (38°C)
- Do not apply if rain or wind is expected within 4 hours
- Allow 48 hours drying if surface has been rained on
- May leave residue on glass or metals
Product Properties
| Property | Specification |
|---|---|
| Form | Clear to slightly yellow liquid |
| Active Content | 100% |
| Density | 0.89 s.g. |
| Viscosity | 2.5 cps |
| Solvent | None |
| VOC | < 400 g/L |
| Flash Point | 150°F (65.5°C) |
